Technical Parameter:
| Tensile strength(wrap/weft) | 5700/5100N/5m |
| Tearing strength(wrap/weft) | 900/800N |
| Use temperature | -30°C- +70°C |
| Fire protection Level | French standard NF-P92-503 Or German standard M2 DIN 4120 B1 |
Features
1) Safety
radar sensor,photo sensor,air safety bag include
2) Tightness
Aluminium alloy seal brushes are added to either side of the slide way,reducing noise and enhancing tightness,there is flexible PVC banner at bottom,making it cling to all kinds of uneven ground closely and meeting the standard of seal.
3) Power
S ERVO or SEW motor,380V,50HZ, IP55 Power:0.75KW-----1.50KW
4) Speed of opening and closing:
Opening speed:0.8m-1.6m/s(adjustable),1000-1500 times/day
5) Control box
Shihlin brand Frequency changer,KEWEI brand PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.

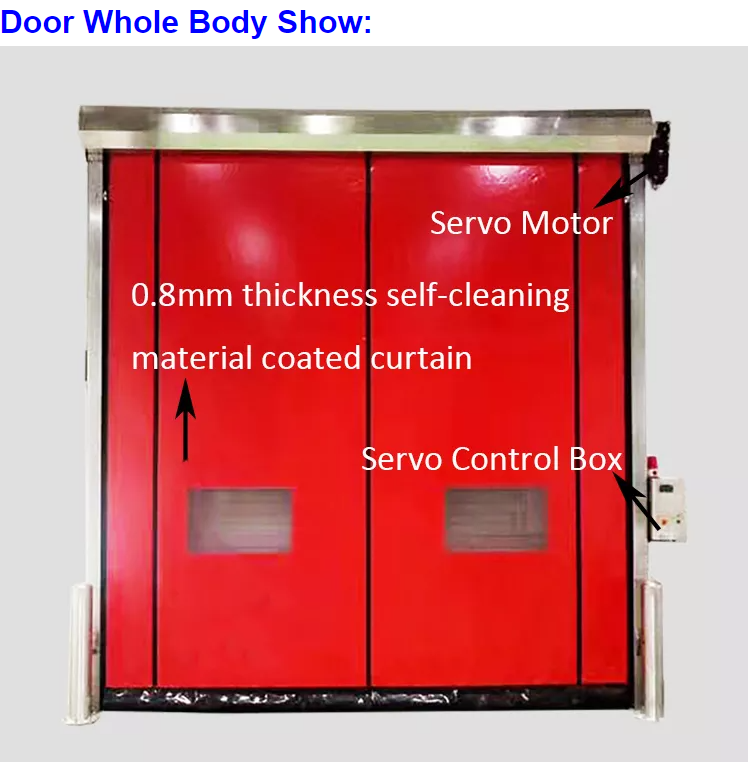

6) Door structure:
Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish
Industrial PVC High Speed Rolling Shutter Doors, Automatic Plastic Fabric Rapid Rolling up Door (HF-1041)
Product Use :
Internal/External rapid rolling door, used in high-frequency logistics channel. The door curtain wind resistant pole was formed by the wind resistant steel tube( wind resistant pole: it is on the request about the door opening's wind pressure to deploy), strong wind resistant, suitable for large-scale external doors and in request wind resistant's internal doors, sealing, vermins-proof and dust-proof, protecting the working environment.
Applications:
*Indoor, outdoor which requests resistant the wind/ temperature .
*Heavy industry, Light industry, food industry, electronics, pharmaceutical, warehousing, packaging, printing, chemical industry, automobile, manufacturing.
*The Industries In high request in environmental health.
Product Tags:
|
|
Automatic Galvanized Rapid Roller Doors Dust Barrier Self Repairing PVC Zipper Images
|
